Blowers

Highlights

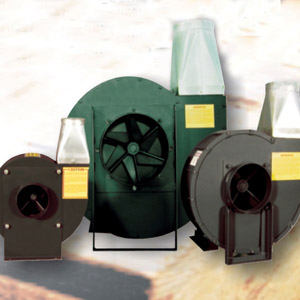

• Power through sawdust, shavings and chips with heavy-duty rugged steel construction blowers.




Model 42 (6-blade) and Model 26 (4-blade) both feature a 3/8" steel plate double-spoked fan for
high volume and with static and dynamically balanced blades for smooth, quiet, vibration free operation
and long life. Models 42 and 26 are also equipped with a replaceable heavy-duty scroll sheet for
longer life and reduced replacement costs. Model 18 (4-blade) features 1/4" steel plate fan blades
with a compact design for economical operation. Models 42, 262 and 18 feature integral motor mounts           for simple, fast installation.

Blower Specifications

Housing Diameter

18”

26”

42”

Overall Height

19”

40”

56”

Drive to Intake

20”

30”

50”

Inlet Diameter

6”

10”

18”

Outlet Diameter

5”

8”

12”

HP

3 or 5 HP

7.5 – 15 HP

30-50 HP

Fan Diameter

12”

20”

32”

Shaft

1”

1-1/2”

1-15/16”

Motor Mount

Yes

262-yes; 26-no

Yes

Motor & Drive

Optional on all models
