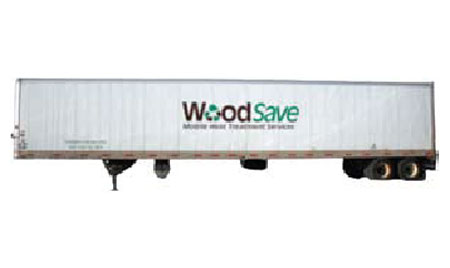

WOODSAVE MOBILE HEAT-TREATMENT SYSTEM

Highlights

• Chamber Size: 8 ft.(240cm) wide x 8 ft.(240cm)tall x 48 ft. (14.6M) long
• Typical Capacity: Up to 400 - 48"x40 Pallets
• Operating Temperature: -20C to +100C
• Peak Energy Consumption: 70,000 kva
• Energy Source: Portable Generator
• Alternative Energy Source: Direct Building Electrical Connection –
• Three Phase, 480 VAC or 575 VAC
• Trailer: DOT Approved 53 ft(16.15M)
• Sensors: Two (2) Chamber Ambient, and Three (3) Wood Core, One (1) Humidity, and Two (2) Heating System Safety Probes
• Data Collection: USB Port Data Transfer
• Maintenance-free Design
• Electrical Components UL, CE, and CSA Approved
